Application::

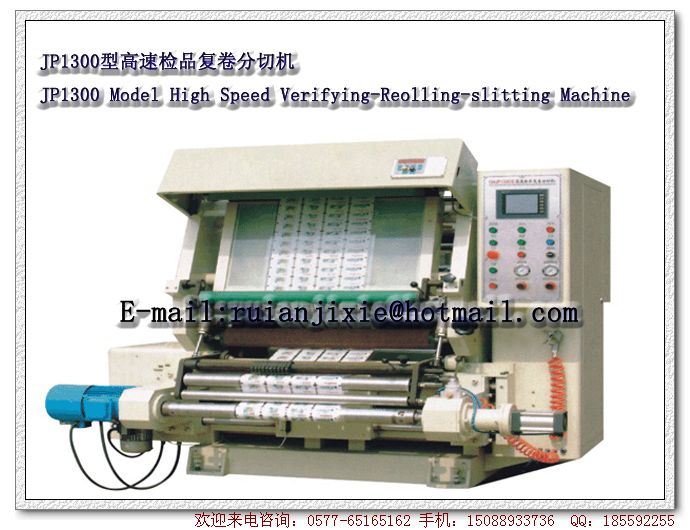

This machine is applied to verifying-rolling-slitting BOPP, PET, CPP, PVC,AL-FOIL and paper in printing Characteristics.
Main Features:
1. The complete machine is equipped with imported Plc, and with a touch screen and man-kmachine interface in operation.
2. The reeling transmission is govemed by a vector frequency inverter adjusting vector motor, and PLC can automatically calculate the reeling diameter, which can achieve the reeling tension control constantly.
3. The traction transmission adopts vector frequency inverter adjusting vector motor; achieving constantly controlling the linear speed.
4. The rolling transmission is driven by a vector frequency motor and floating roller system and PLC can automatically calculate the reel diameter, achieving the reeling tension conical control, Adopting floating roller to control tension that can realer achieve the rolling of zero tension, to solve the problem of print-ting picture inverse adhibit and materialstrengthen because of the heavy tension.
5. The system is equipped with an auto flasher in order to observe the printing patterns in eyes the printing defects. If the printing defects of the printing patterns are observed in eyes, please press the button to automatically return to the defect point.
6. The system can calculate the meters, measure the roller diameter,protect the machine when the feeding material roller becomes smallestand the collecting roller becomes largest, and protect the machine at shortage of materials, which can set the meters and slit by the set roll diameter.
7. The rolling and reeling device adopts shaft-free core(also called air shaft feeding), which is to feed material through clipping closely by a thread rod, and the width adjustment is done electrically as well.
8. He edge rectify deviation device is static with the movement routine ranging to 120mm.
9. It can add slitting device.
10. The design of this machine is integrated the eletric, mechanical, and pneu-matic technology, and with a complete security protection device.
The specification is based on 6 colors
Main Technical Parameter :
| Model | JP1300 |
| Width of material | 1300mm |
| Diameter of material | ф600mm |
| Diameter of paper core | ф76mm |
| Verifying speed | 260m/min |
| Width of finished products | 30-1300mm |
| Slitting precision | 0.5mm |
| Weight | 2500kg |
| Total power | 15kw |
| Overall dimension(L×W×H) | 1735x2800x1800mm |
