Product Overview:

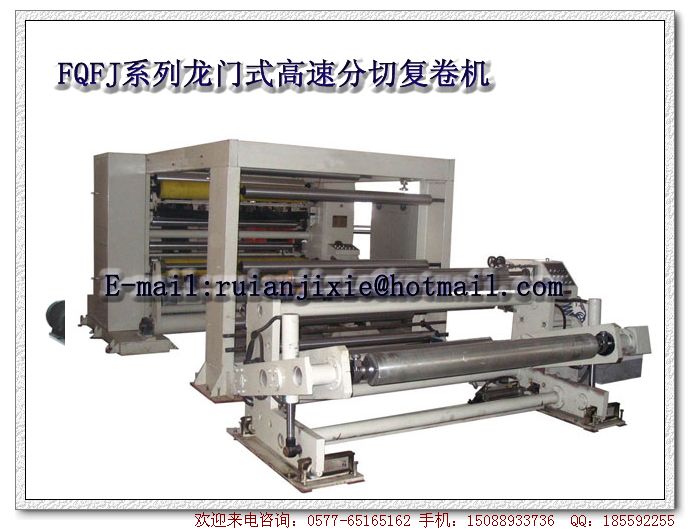

FQFJ series of slitting and rewinding machine is a set of slitter rewinders twenty years production experience with all types of users thermal paper, carbonless carbon paper of the actual production needs, and foreign similar products, advanced structure, development and manufacturing of self-generation of specific types of thermal paper, carbonless printing paper and various paper slitting and rewinding professional equipment.
Features:
• frame structure on the paper feed roller parallel
• Unwinding the use of automatic tracking overall mobile liquid correction can also be manually adjusted partial
• Automatic hydraulic lift to put on the roll of material volume, automated unwinding
• winding structure before and after the two independent stations, winding arm controlled by a photoelectric-type center automatic involute winding, and the use of hydraulic control, hydraulic rolling after the material can be controlled automatically scroll up and down
• cut using a round knife cutting, the end of the next round to spindle is assembled and shim combination, press circle on the round knife blade position adjustment of the mouth position without any disassembly
• machine uses frequency conversion motor, stepless speed regulation, the maximum cutting speed of 350m/min Rewinding
• retractable digital taper tension control and precision drive technology, the human-machine interface for parameter setting, operation monitoring and operation
• a rolling tight, finished inside and outside the elastic line, face smooth, easy operation, cutting speed, and suitable for wide range of characteristics, to meet all kinds of materials, slitting and rewinding needs, the overall design of this machine with high efficiency, high precision and high reliability as the basic starting point, cutting machine combined twenty years experience in manufacturing and technology and many other advantages. So that customers really appreciate the high quality, low-cutting machine, cost-effective superior performance.
Product parameters:
| Cutting material |
40 ~ 80g / m Thermal Paper |
| Device width |
1300mm~2200mm |
| Unwinding diameter |
￠1200mm |
| Winding diameter |
￠800mm |
| Put Reel Specifications |
¢ 76mm ¢ 152 air shaft |
| Rewinding Specifications |
¢ 76mm air shaft |
| Maximum cutting speed |
350m/min |
| Minimum cutting width |
200mm |
| Rolling face flatness |
≤±0.3mm |
| Total power |
About 50kw |
| Power supply |
Three-phase, 380v, 50Hz
|
|
Dimensions (L ╳ W ╳ high)
|
5600mm×3200mm×2000mm |
