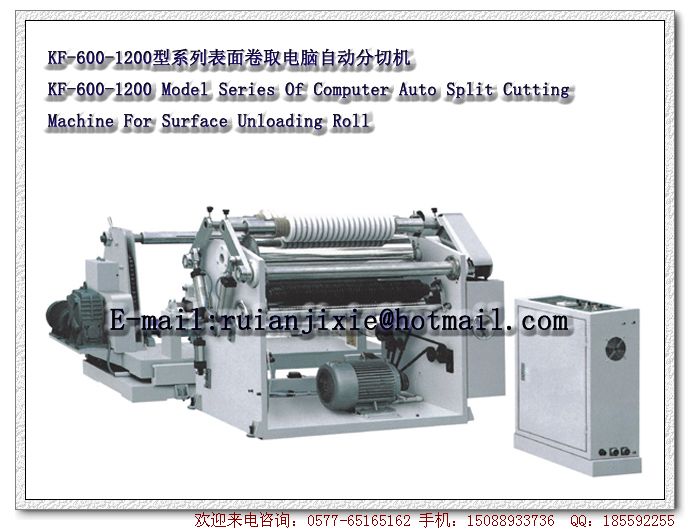

Cross-cutting, cutting machine
Your location：Home >> Cross-cutting, cutting machine
Performance & Features:：
This machine is an ideal equipment which is suitable for small-scale cutting these materials,such as reel paper, plastic piece, Al foil, PVC,plastic film and insulation material, etc.The main machine features with frequency speed control, unwinding with constant tensionmagnetic powder control, photoelectricity automatic deflection-rectifying, winding with bothcentral and surface reeling which coordinated controlled (air pressure) by two magnetic powder clutches and main machine, interleaving winding with double shafts and never undercutting, presetting counter and automatic stop.
Main Technical Parameters:
| Max.width of row material | 600-1200mm |
| Max.diameter of row material | φ1000mm |
| Internal diameter of rolling paper core | φ25-φ76mm(可选) |
| Internal diameter | φ420mm |
| Min.width of split cut | 平刀 (5mm) 圆刀 (6mm) |
| Electrical machinery power | 5.5/7.5kw |
| Weight | 3000kg |
| Overall dimension | 2500x2500x1100mm |
