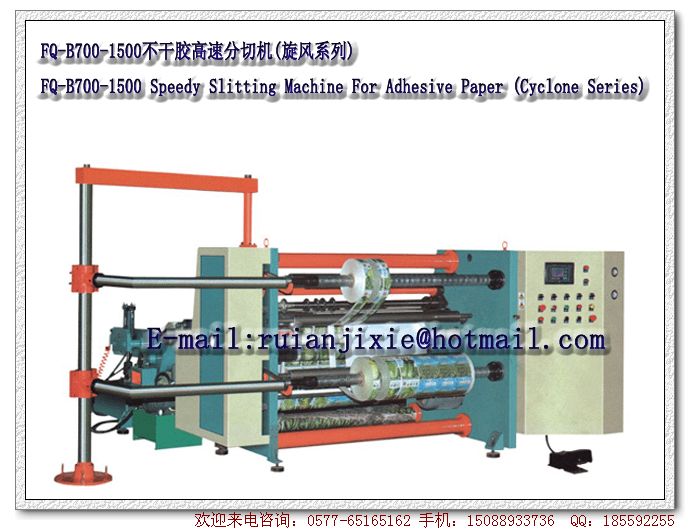

Your location：Home >> Cross-cutting, cutting machine.jpg "FQ-B700-1500 self-adhesive high-speed cutting machine (Cyclone Series)")
Application And Features :
As an economic and practical speedy slitting machine,it is used for web paper, adhesive material and single/double silicon paper.
Main Technical Parameter:
| Material width | 1500mm |
| Slitting width | 50mm-1500mm |
| Slitting speed | 260m/min |
| Max. Unwind diamete | ￠1000mm |
| Max. Rewind diameter | 2×￠600mm |
| Unwind shaft | Air Shaft |
| Rewind shaft | Differential Slip Shaft |
| Paper core dimension | ￠3″ |
| Main control | PLC System + Man-Computer Interface |
| Tension control type | Taper Control Auto |
| Driving type | Vector Frequency Change |
| Web guiding system | EPC(Edge Position Correction |
| Slitting type | Circular Cutting Knife (A、Fixed Type B、Alterable Type) |
| Voltage | 3相 3 Phases /AC 380V/ 50HZ |
| Overall machine weight | 3T-5T |
