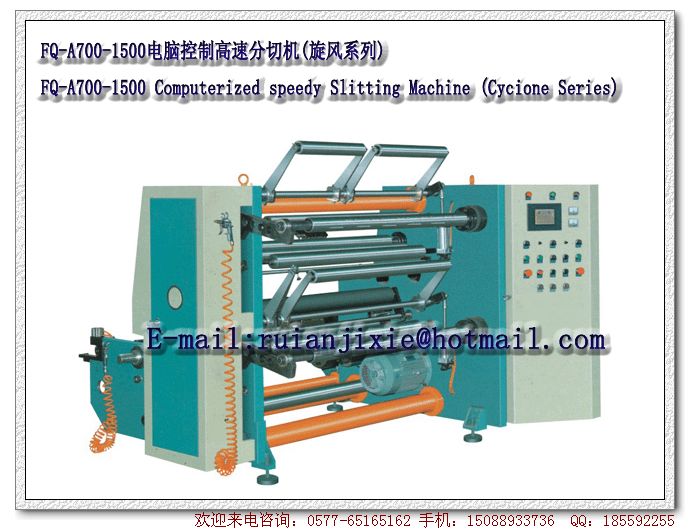

Your location：Home >> Cross-cutting, cutting machine.jpg "FQ-A700-1500 Computerized speedy Slitting Machine (Cyclone Series)")
Application :
As a general-purpose speedy slitting machine,it is mainiy used for slitting rolied matenals like BOPP,PET,CPP,CPE,and so on,The whole machine with fast speed smooth rewinding and easy operation .
Main Technical Parameter:
| Matenrial width | 700mm-1500mm |
| Slitting width | 50mm-1500mm |
| Slitting speed | 260m/min |
| Max.Unwind diameter | ￠700mm |
| Max.Rewind diameter | 2×500mm |
| Unwind shaft | Air Shaft |
| Rewind shaft | Air Shaft |
| Paper core dimension | ￠3″ |
| Main control | PLC System+Man-Computer Interface |
| Tension control type | Taper Control Auto |
| Driving type | Vector Frequency Change |
| Web guiding system | Cinese Photoelectrity |
| Slitting type | Straight Cutting Knife(A、Fixed Type B、Alterable Type Circular Cutting Knife(A、Fixed Type B、Alterable Type |
| Working power supply | 3Phases/AC 380V/50HZ |
| Overall machine weight | 3T-5T |
