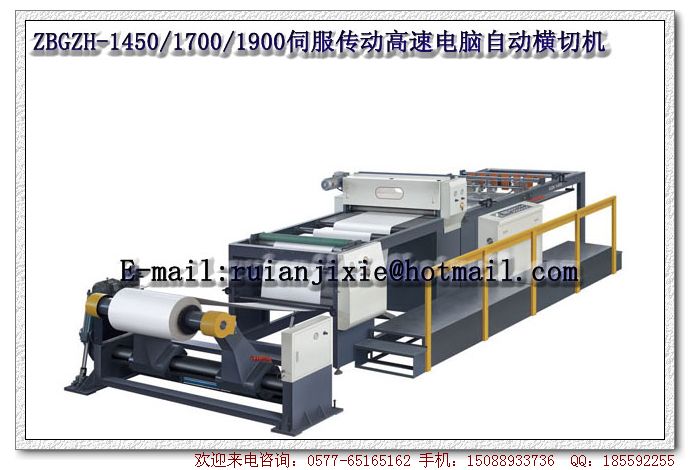

Cross-cutting, cutting machine
Your location:Home >> Cross-cutting, cutting machineAutomatic cutting machine high-speed computers. Cardboard-type cutting machine. Thickness of the dual-type paper cutting machine, for wide lack of cardboard, coated paper, kraft paper, fine paper, offset paper, glossy photo paper, gold and silver cardboard , aluminum foil paper and laser paper, tobacco wrapping paper, etc., is a high efficiency, high precision, high stability of paper processing equipment.
Main technical parameters:
MODEL
|
ZBGZH-1450
|
ZBGZH-1700
|
ZBGZH-1900
|
reference weight of cutting-paper
|
|
60-550GSM
|
|
cutting precision
|
|
±0.3mm
|
|
max.cutting speed
|
|
160sheets/min
|
|
max.cutting meter speed
|
|
90m/min
|
|
cutting length range
|
|
450-1450mm
|
|
max.scroll diameter
|
|
1800mm
|
|
peper-piling height
|
|
1200mm
|
|
max.paper-cutting width
|
1450mm
|
1700mm
|
1900mm
|
gross weight
|
6000kg
|
7000kg
|
8000kg
|
