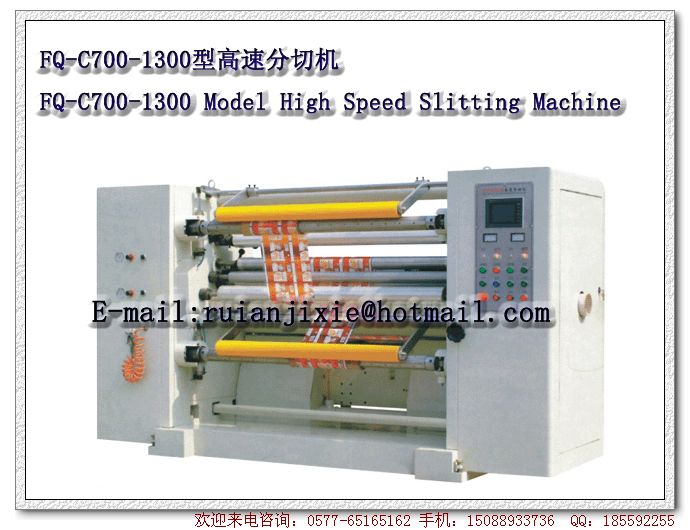

Cross-cutting, cutting machine
Your location：Home >> Cross-cutting, cutting machine
Application :
This machine is applied to slitting BOPP, PET, CPP, PVC ALFOILand paper in printing。
Main Features:
1.The complete machine is equipped with PLC(four vector motor), and with a touch screen and man-machine interface in operation.
2. The unwinding transmission belt is govemed by a vector motor, and PLC can automatically calculate the unwinding roller diameter, which can achieve the unwinding tension control constantly.
3. The traction transmission adopts vector frequency inverter controlling the vector motor, constantly controlling at a linear speed.
4. The rewinding transmission adopts a vector motor, adjusted by vector freque-ncy inverter and PLC can automatically calculate the rewinding roller diameter, which can achieve the rewinding tension control constantly.
5. The rewinding and unwinding device adopts shaft-free core(also called inflat-able air shaft feeding), which is to feed through clipping closely by a thread rod, and the looseness and tightness adjustment is done electrically as well.
6. The edge-correction actuator is static with the movement routine ranging to 120mm.
7. It adopts the round and flat blades to slit.
8. The system of the machine has the function of meter-counting, roll diameter operation and protecting the machine while it lack of material, achieving the slitting by setting the meters and roll diameter.
Main Technical Parameter :
| Model | ZDFQ-C700-1300 |
| Width of material | 1300mm |
| Diameter of material | ф600mm |
| Diameter of paper core | ф76mm |
| Slitting speed | 200m/min |
| Width of finished products | 30-1300mm |
| Slitting precision | 0.5mm |
| Weight | 2-2.5T |
| Total power | 15kw |
| Overall dimension(L×W×H) | 1550x3000x1550mm |
