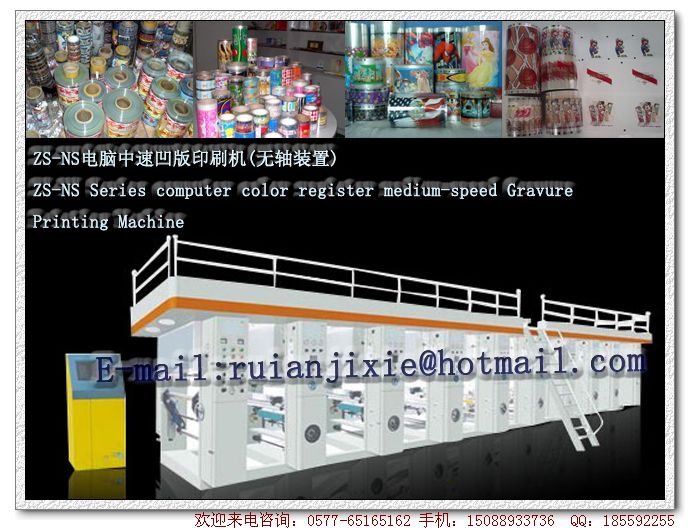

ZZS-NS-speed computer gravure printing machine (no axis device).

Hits：
ZZS-NS-speed computer gravure printing machine (no axis device).

Feature:
1. The whole machine is fixed by permutation composition, according to the customers' requirement the printing color unit can be increased or decreased as well as the cover printing mechanism can be added.
2. The mainframe adopts vector frequency speed controller, The whole machine adopts threes-motor constant-tension force control system.
3. Each unit of computer flashed system is controlled by separating microprocessor. It can adjust the flashed deviation quickly and precisely.
4. With display of flashed deviation, correcting for system comprehensive deviation as well as super-different slamming function.
5. Double photo-electricity checking; improve the whole checking and adjustment speed.
6. The winding and the winding traction adopt vector frequency motor and moment motor controller.
7. Wing is adopted with frequency motor with magnetic powder clutch to wind.
8.The printing pressure cylinders, discharging traction pressure cylinders and winding traction pressure cylinders adopt pneumatic controller.
9. Pneumatic back pressure shifting blade.
10. Ink cycle system.
11. Gas expansion style loading and unloading shaft.
12. Winding and rewinding are both double working mechanisms to make the material complete with non-stop.
13. It can elect different computer flashed boundary and stationary checking figure.
Main parameter:

Model ZS-NS 800 ZS-NS 1000 ZS-NS 1200
Printing Colors 1-9 1-9 1-9
Diameter of Printing cylinder 100-320mm 100-320mm 100-320mm
Max. Printing width 800mm 1000mm 1200mm
Max. diameter of Unwind 600mm 600mm 600mm
Max. diameter of Rewind 600mm 600mm 600mm
Max. Printing Speed 90m/min 90m/min 90m/min
Register Precision ≤0.10mm ≤0.10mm ≤0.10mm
Drying Method 电加热 电加热 电加热
Machine Power 78kw 82kw 86kw
Machine Weight 15000kg 16000kg 17000kg
Oerall dimension 132×270×275m 132×290×275m 132×310×275m
