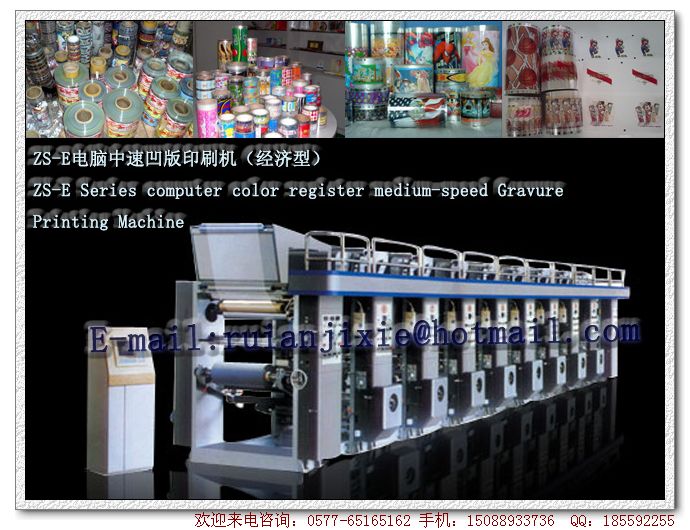

Printing Machine
Your location：Home >> Printing Machine
Feature:
1.Printing colors: 8 (Max. printing colors: 13 ).
2.Printing color unit can be increased or decreased according to customer's requirement.
3.Unwind& Rewind are both double-armed dual working turret type.. Main motor adopts with frequency motor and inverter
4.Oven: Upper and lower fan Siamese. and toxic emission centrifugal fan, Are large centrifugal blower. Are the realization of the second return air，Improve the efficiency of the use of hot air.
5.Unwind& Unwind traction adopt with magnet powder brakers and auto tension control system
6.wind& Rewind traction adopt with torque motors
7.Printing pressure roller, traction pressure roller, doctor blade.and toxic emission centrifugal fan etc are all pneumatic type.
8.Shiftless pneumatic type printing cylinder installation.
9.Structure of ink scraper: The ink scrapers can be adjusted up and down as well as its positions. The pressure of scraper adopts dual air pressure style .The horizontal movement adopts both the rotations of the motor and movement of cam. Performance: lengthen the service of the printing cylinders
10.Register system: Computer auto color register system
Main parameter:
| Model | ZS-E600 | ZS-E800 | ZS-E1200 |
| Printing Colors | 1-9 | 1-9 | 1-9 |
| Diameter of Printing cylinder | 100-320mm | 100-320mm | 100-320mm |
| Max. Printing width | 600mm | 800mm | 1200mm |
| Max. diameter of Unwind | 800mm | 800mm | 800mm |
| Max. diameter of Rewind | 800mm | 800mm | 800mm |
| Max. Printing Speed | 120m/min | 120m/min | 120m/min |
| Register Precision | ≤0.10mm | ≤0.10mm | ≤0.10mm |
| Drying Method | 电加热 | 电加热 | 电加热 |
| Machine Power | 76kw | 84kw | 100kw |
| Machine Weight | 19000kg | 20000kg | 22000kg |
| Oerall dimension | 152×250×250m | 152×270×250m | 152×310×250m |
