HS high-speed computer gravure printing machine chromatography (retractable material external)

Hits：

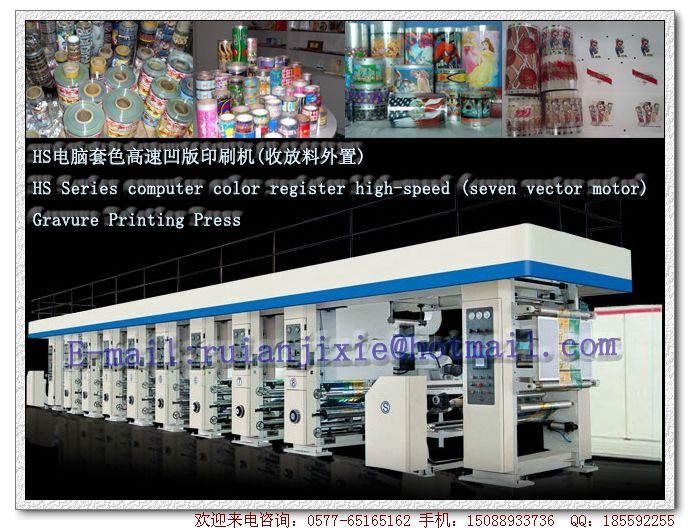

HS high-speed computer gravure printing machine chromatography (retractable material external)

Feature:
1.Its speed is 100-130m/min,the mechanical speed is 150 m/min.
2.Adopts vector inverter to control the vector electric machine transferring each group of printing blocks. Performance: save electricity
3.The installation of blocks adopts air cylinder.The horizontal adjustment adopts the movement of screw. Performance: reduce time to replace the blocks, assure the boards to be concentric, improve the quality of product.
4.The ink scrapers can be adjusted up and down as well as its positions. The pressure of scraper adopts single air pressure style. The horizontal movement adopts both the rotation of the electric machine and movement of cam. Performance: lengthen the service of the blocks.
5.The impression adopts dual air cylinder to impress through lifting to position the slipper, which is a protector for the air leakage of the cylinder and also a protector for falling of the cylinder when the machine stops working. Performance: Assure the average of pressure and chromatic aberration.
6.They adopt computer to control, synchronic electric machine to transfer the ball thread bar to adjust the chromatography through reducing the speed to register color automatically. Performance: Rotate with lubrication and high precision in chromatography.
7.The material collecting and feeding stand adopts dual scaffold.The extension and traction of material collecting and feeding adopt inverter vector to control the line speed.
8.The oven adopts centrifugal blower to blow and make suction, The electric tubes are installed averagely in each group of ovens at their blowing mouth to heat. The temperature is controlled by intelligent temperature control instrument.Performance: electric saving
Performance and Characteristics:
1.Suitable for Non-woven,Cellophane:20-30μm,PET:12-60μm,PE:40-80μm,OPP:15-60μm,BOPP:15-60μm,CPP:15-60μm,PVC:20-80μm,NY:15-50μm,PAPER:30-80gsm,Composite film:15-60μm, and other film materials with the similar printing performance listed above.
2.With seven-motor control.
3.Printing color unit can be increased or decreased according to customer's requirement.
Main parameter:

Model HS-600 HS-800 HS-1000 HS-1200
Printing Colors 1-9 1-9 1-9 1-9
Diameter of Printing cylinder 100-320mm 100-320mm 100-320mm 100-320mm
Max. Printing width 600mm 800mm 1000mm 1200mm
Max. diameter of Unwind 800mm 800mm 800mm 800mm
Max. diameter of Rewind 800mm 800mm 800mm 800mm
Max. Printing Speed 130m/min 130m/min 130m/min 140m/min
Register Precision ≤0.10mm ≤0.10mm ≤0.10mm ≤0.10mm
Drying Method Electric heating Electric heating Electric heating 电加热
Machine Power 76kw 84kw 92kw 100kw
Machine Weight 19000kg 20000kg 21000kg 22000kg
Oerall dimension(mm) 152×250×275m 152×270×275m 152×290×275mm 152×310×275m
