Application:

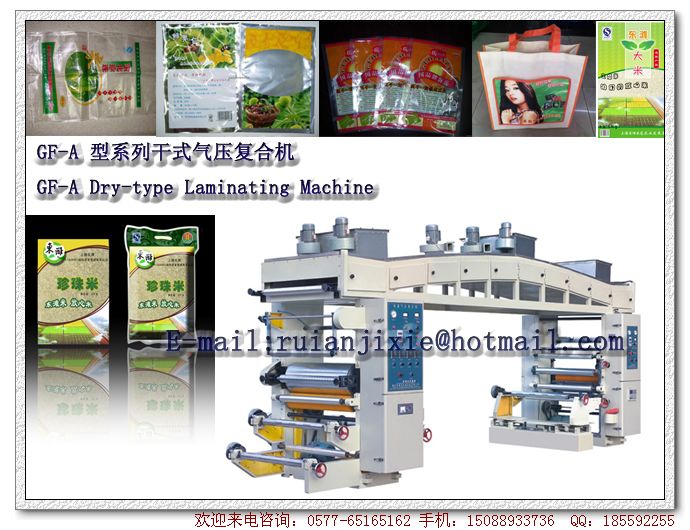

This machine is suitable for laminating plastic-plastic, paper-plastic, paper-paper and aluminum foils and other laminated materials in the packing industry.
Performance and Features:
1.The glue coating and laminating motor adopts imported double variable frequency synchronous speed regulating to change the past shaft driving structure.
2.Smooth material feeding and synchronous linear speed.
3.The bridge-type three-segment drying tunnel heating increases temperature and the drying system makes laminating speed even higher.
4.Gluing and laminating adopt pneumatic pressing rollers and imported pneumatic components.
5.The two kinds of doctor blade type and pressing-type gluing ways can be chosen at will according to different processes.
6 Unwinding and Rewinding adopts power tension control.
7.The interlocking and subsection temperature control temperature at the best state.
8.First unwinding adopt automatic EPC system.
9. Second unwinding adopt duplex turret.
Main technical variables:
| Type | GF-600A | GF-800A | GF-1000A |
| Max.LaminatingWidth | 600mm | 800mm | 1000mm |
| Max.Web Width | 620mm | 820mm | 1020mm |
| Max.LaminatingSpeed | 80m/min | 80m/min | 80m/min |
| Max.MechanicalSpeed | 90 m/min | 90 m/min | 90 m/min |
| Max.DiameteroMaterialRoll | ф500mm | ф500mm | ф500mm |
| InternalDiameter of Roll Core | ф76mm | ф76mm | ф76mm |
| LengthofDrying Channel | 7500mm | 7500mm | 7500mm |
| PowerforDrying Channel | 23.4mm | 31.2mm | 39mm |
| TotalPower | 37mm | 46.3mm | 56mm |
| WeightoMachine | 6000kg | 7000kg | 8000kg |
| OverallDimension | L8300×W1600×H3000mm | L8300×W1800×H3000mm | L8300×W2000×H3000mm |
