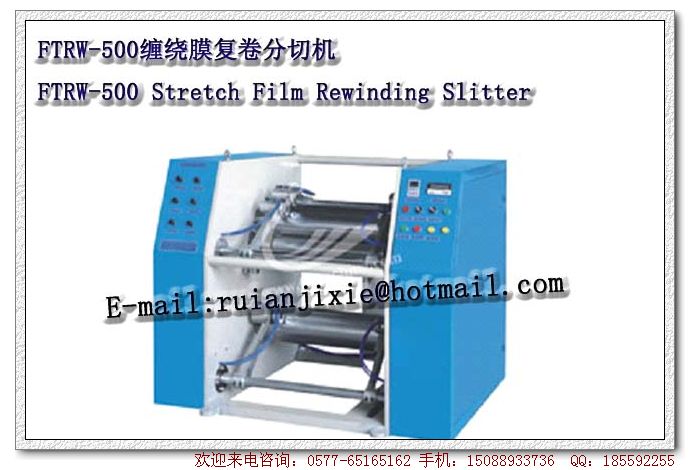

Stretch Film Machine，Bubble Film Machine
Your location：Home >> Stretch Film Machine，Bubble Film Machine
Use:
It is a kind of multi-functional machine integrated with slitting and rewinding. It mainly slits large-sized stretch film into small ones which avoids the split-level film and improves
the technical index of product ,such as level and appearance quality ect.
Main Technical Variables:
| Item | FTRW-500 |
| Width of finished products(mm) | 500 |
| Power of motor(kw) | 1.5 |
| Linear speed of machinery(m/min) | 400 |
| Roll laying mode | By hand |
| Diameter of parent roll(max)mm | φ400 |
| Width of parent roll(max)mm | 500 |
| Core specification of parent roll | 3" |
| Width of sub-roll(mm) | 500 |
| Diameter of sub-roll(max)mm | φ300 |
| Core specification of sub-roll | 3",2" |
| Overall dimensions (L*W*H)(m) | 1.4*1.1*1.1 |
| Weight(kg) | 700 |
