Feature：

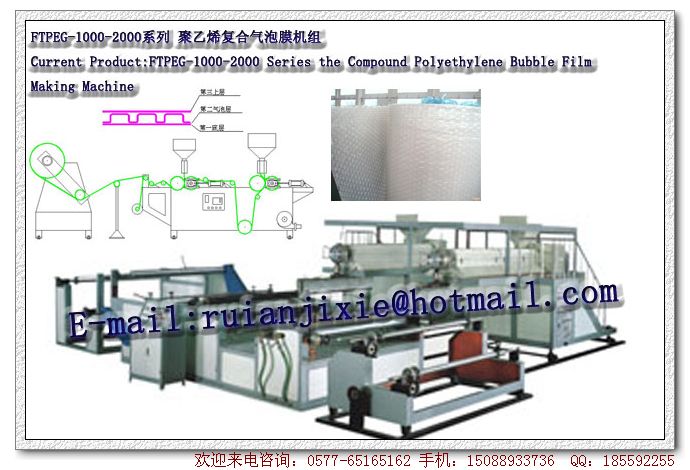

This aircrew adopts the disposable shaping craft. it is our company that draws domestic and inter national advanced technology extensively, through a great deal of production practices in having ordinary equipment originally, develop, designing, Can produced polyethylene compound bubble (cushion)membrane in succession. designs science, practical, rational in structure of the machine.
Main Technical Variables:
| Model | FTPEG-1000 | FTPEG-1200 | FTPEG-1500 | FTPEG-1800 | FTPEG-2000 |
| Main and minor Screw Diameter |
φ60mm φ50mm | Φ65mm φ55mm | Φ75mm φ60mm | Φ85mm φ65mm | φ95mm φ75mm |
| Main Motor | 15kw 7.5kw | 15kw 11kw | 18.5kw 15kw | 30kw 15kw | 37kw 18.5kw |
| Film width | 600mm | 1200mm | 1500mm | 1800mm | 2000mm |
| Output | 80kg/h | 100kg/h | 150kg/h | 180kg/h | 220kg/h |
| Total power | 86kw | 95kw | 112kw | 141kw | 158kw |
| L/D | 28:1 | 28:1 | 28:1 | 28:1 | 28:1 |
| Linear speed | 1000m/h | 1000m/h | 1000m/h | 1000m/h | 1000m |
