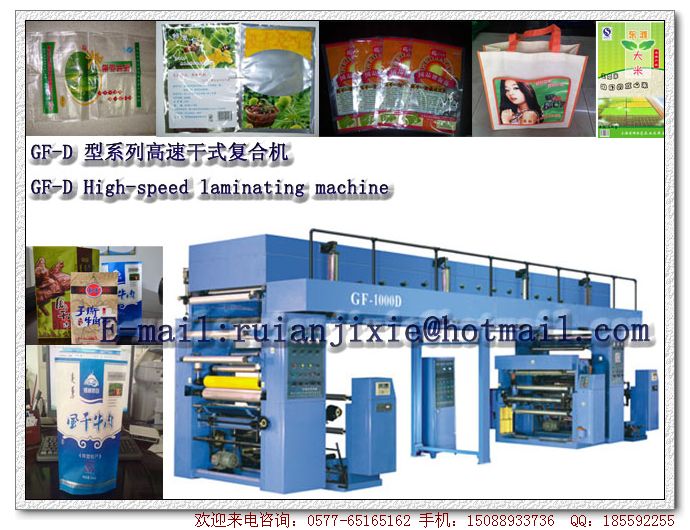

Application:
This machine is suitable for laminating plastic-plastic.paper-plastic,paper-paper and aluminum foils and other laminatd materials in the packing industry.
Performance and Features:
1.Whole machine controlled by PLC controller, with high running reliability and stability.
2.In-touch screen man-machine interface,10.4"
3.Imported nine vector motor closed loop auto-tension synchronous control systen.
4.Anilox roller with doctor blade for coating,various of anilox rollers available for different coating amount.
5.Turret type unwinding station with EPC and auto splicing system,high speed non-stop shaft exchange
6.Turret type rewinding station with EPC and auto splicing system pre-driver,high speed non-stop shaft exchange
7.Movable doctor blade with pneumatic back pressure
8.Four independent constant temperature section drying system with separated heating station and hot air in feeding.Temperature is controlled automatically.
9.Pneumatic lifting drying channel and operating platform for web passing,active synchronous running leading roller inside drying channel
10.Pre-heating before laminating, water cooling roller for laminated web.
11.Inflatable Air Shaft for web loading/unloading
12.Three rollers nip laminating method,laminating pressure more even to ensure higher peel strength
Main technical variables:
| Type | GF-800D | GF-1000D | GF-1200D |
| Max.LaminatingWidth | 800mm | 1000mm | 1200mm |
| Max.Web Width | 850mm | 1050mm | 1250mm |
| Max.LaminatingSpeed | 150m/min | 150m/min | 150m/min |
| Max.MechanicalSpeed | 160m/min | 160m/min | 160m/min |
| Max.DiameteroMaterialRoll | ф600mm | ф600mm | ф600mm |
| InternalDiameter of Roll Core | ф76mm | ф76mm | ф76mm |
| LengthofDrying Channel | 10000mm | 10000mm | 10000mm |
| PowerforDrying Channel | 72kw | 84kw | 92kw |
| TotalPower | 128kw | 140kw | 154kw |
| WeightoMachine | 10000kg | 11000kg | 12000kg |
| OverallDimension（L×W×H） | L12500×W4000×H3200mm | L12500×W4200×H3200mm | L12500×W4400×H3200mm |
