GF-C Series high-speed dry compound machine pressure

Hits:

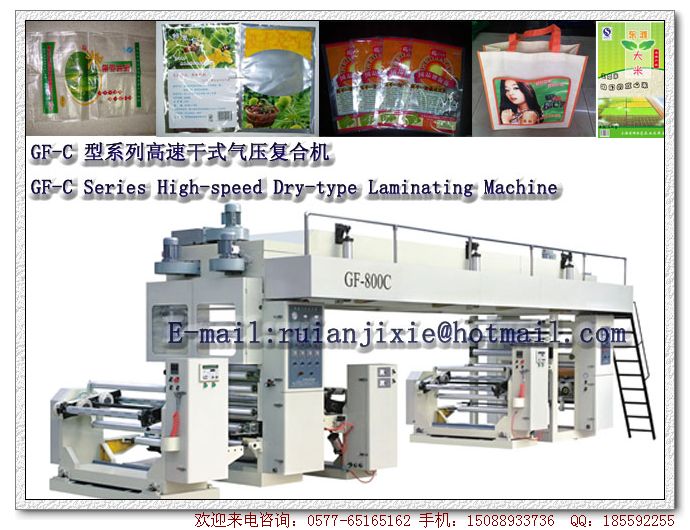

GF-C Series high-speed dry compound machine pressure

Application:
This machine is suitable for the double-layer or multiple-layer lamination of such roll film material as BOPP, PET, nylon,CPP,CPE aluminum foil and paper, etc.
Performance and Features:
1.Coating and laminating of main machine are of double-shaft synchronous frequency conversion and feedback control.
2.Thickness of glue coating can be chosen by mesh of anilox roller and doctor blade
3.Auto tension controller for three section constant tension control.
4.Turret type unwinding station.pre-tension control for non-stop shaft exchange.
5.Unwinding station equipped with EPC system.
6.Turret type rewinding station.pre-tension control for non-stop shaft exchange.
7.Movable doctor blade with pneumatic back pressure
8.Three independent constant temperature section drying system with infra heating tube and air blower, inner circulated intake and exhaust device available to ensure the full dryness of web
9.Pneumatic lifting drying channel and operating platform for web stretch, active synchronous running leading roller inside drying channel.
10.Pre-heating before laminating, water cooling roller for laminated web.
11.Inflatable Air Shaft for web loading/unloading
12.Three rollers nip laminating method.laminating pressure more even to ensure higher peel strength.
Main technical variables:

Type GF-600C GF-800C GF-1000C
Max.LaminatingWidth 600mm 800mm 1000mm
Max.Web Width 650mm 850mm 1050mm
Max.LaminatingSpeed 130m/min 130m/min 130m/min
Max.MechanicalSpeed 140m/min 140m/min 140m/min
Max.DiameteroMaterialRoll ф600mm ф600mm ф600mm
InternalDiameter of Roll Core ф76mm ф76mm ф76mm
LengthofDrying Channel 9000mm 9000mm 10000mm
PowerforDrying Channel 27kw 36kw 45kw
TotalPower 57kw 66kw 77kw
WeightoMachine 8000kg 9000kg 10000kg
OverallDimension L11000×W2300×H3100mm L11000×W2500×H3100mm L11000×W2700×H3100mm
