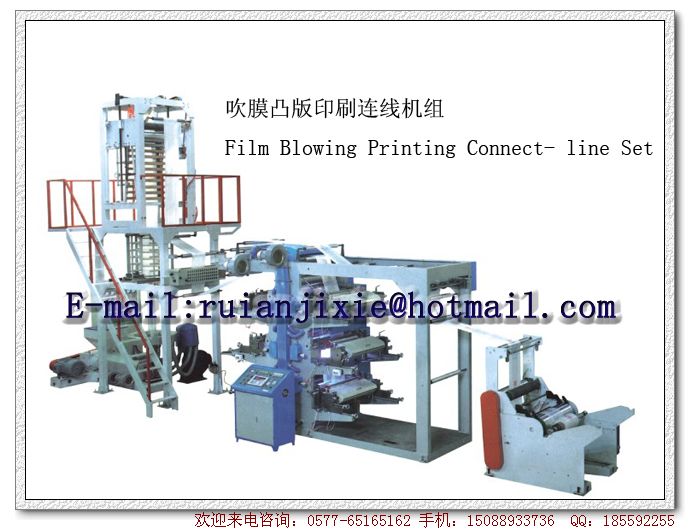

Film Blowing Machine
Your location：Home >> Film Blowing Machine
Main Technical Variables:
| Model | suitable material | screw diameter(mm) | screw L/D length | blowing film driving motor(kw) | max.extrusion output(kg/hr) | die size(mm) |
| 600mm | HDPE/LDPE | Φ50mm | 28：1 | 15kw | 45kg | 60/80mm |
| 800mm | HDPE/LDPE | φ55mm | 28：1 | 18.5kw | 60kg | 80/100mm |
| 1000mm | HDPE/LDPE | φ60mm | 28：1 | 22kw | 75kg | 100/125mm |
| width of blowing film(mm) | thickness of blowing film(mm) | max.printing width(mm) | printing length(mm) | precision of color printing(mm) | weight of overall(kg)(two color) | cover dimensions(lxwxh)(mm) |
| 600mm | 0.01-0.06 | 560mm | 250-1000 | 横向：0.2 纵向：0.2 | 4500kg | 8000x2200x4500mm |
| 800mm | 0.01-0.06 | 760mm | 250-1000 | 横向：0.2 纵向：0.2 | 5000kg | 8500x2400x5000mm |
| 1000mm | 0.01-0.06 | 960mm | 250-1000 | 横向：0.2 纵向：0.2 | 5500kg | 9000x2800x5500mm |
