Performance and features:

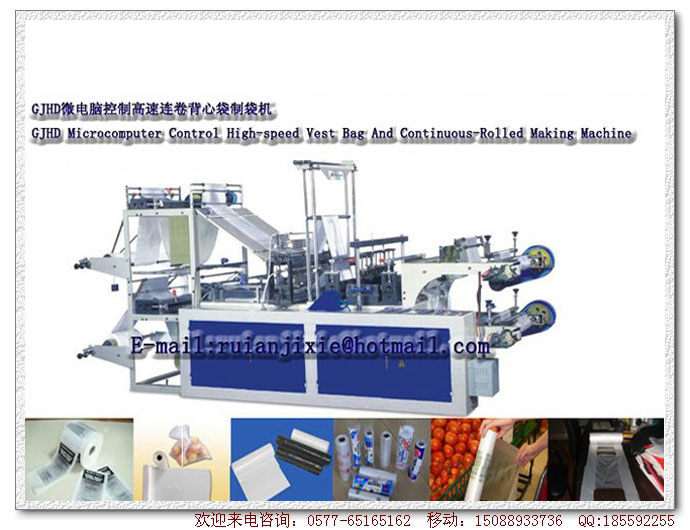

Computer-controlled high-speed continuous-rolled vest bag making machine has a photoelectric automatic tracking microcomputer fixed-length, high-limit stop, automatic counting, automatic alarm when reaching the set value,high compensation accuracy with such characteristics as neat bags, little error and high automatic of whole machine,so it is a kind of ideal equipment for producing blank bags, colour bags, flat bags and vest bags.etc and other various plastic soft packing bags.
Main technical parameters:
| Model | 500mm | 600mm | 700mm |
| Cutting line | two lines | ||
| Bag width | 100-400mm | 100-500mm | 100-600mm |
| Bag length | 100-1000mm | ||
| Cutting speed | 50-120pcs/min/line | ||
| 同步电机 | Stepping motor | ||
| Main motor | 1.5KW | ||
| Heating Capacity | 3KW | ||
| Power supply | 220V, 50Hz | ||
| Electronics used | Top China Brand | ||
| Machine weight | 900kg | 950kg | 1000kg |
| Installed dimension | 3.6×1.15×1.8M | 3.6×1.25×1.8M | 3.6×1.35×1.8M |
| Optional device | Servo motor, imported photocell | ||
