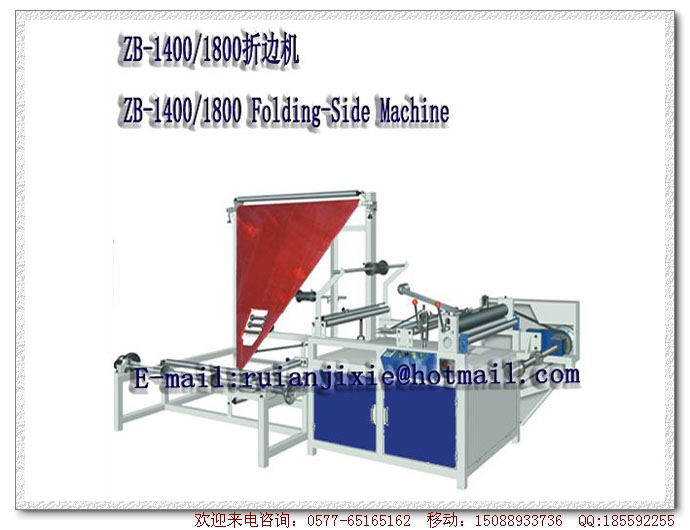

ZB 1400 1800 folding machine

Suitable materials:
BOPP,PP,CPP,POF,PE,etc,which can be used to heat seal and cut (the smoothness of packing materials must be well).
Functions:
Automatic coating,folding organ bottom,coating pearly-luster membrane,ultrasonic hobbing,automatic meter counting, winding and unwinding for materials,magnetism powder brake . This machine is a front production line of cutting machine.
Main technical parameters:


Model	1200	1400	1600	1800
Max.Making width	1200mm	1400mm	1600mm	1800mm
Rollout speed	20-100m/min	20-100m/min	20-100m/min	20-100m/min
Max.Diameter	800mm	800mm	800mm	800mm
Electro-power	1.5kw	1.5kw	1.5kw	2.2kw
Complete weight	400kg	500kg	600kg	700kg
Overall dimension	160x125x135m 110x120x110m	180x135x140m 110x130x130m	200x145x155m 110x140x110m	220x155x185m 125x150x110m
