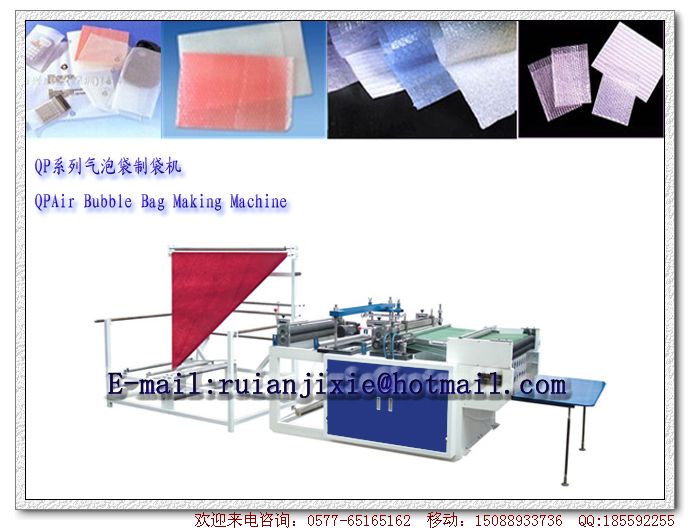

Bag Making Machine
Your location：Home >> Bag Making Machine
●Performance and Characteristics
* Making the bilateral water-cooled, rapid cooling, thermal cutting neat, sealing side firmly.
The machine gathers the advantages of domestic and foreign models, a reasonable compact mechanical structure, operation, low noise, using micro-computer control, LCD screen display, the Chinese operating instructions, so that is the ideal equipment of producing the the production of Pearl Wool And Bubble Film Bags.
Equipment features:
* Introduction of a computerized control system, human-machine interface, simple operation and accurate bag length.
* Making the bilateral water-cooled, rapid cooling, thermal cutting neat, sealing side firmly.
* Auto-folding feed can be homogeneous edge, dislocation side bag making, can completely replace the manual folding, save on labor costs.
* extra bag of feed at the same time, efficiency doubled and redoubled.
* Eagerly mechanism design is reasonable, suitable for thin soft bubble film, EPE bag, but does not occur sealing putty.
* Adjust heat sealing time parameters, it can be used within the thickness of 2mm EPE bag, without an additional body.
1,solid bag sealing line, high production efficiency.
2, easy to use, speed adjust flexible and smooth.
Main technical parameters:
| Model | 500mm | 600mm | 700mm | 800mm |
| Length of bag-making | 100-450mm | 100-550mm | 100-650mm | 100-750mm |
| Width of bag-making | 50-2000mm | 50-2000mm | 50-2000mm | 50-2000mm |
| Model | 60-100m/min | 60-100m/min | 60-100个m/min | 60-100m/min |
| Total power | 3kw | 3kw | 3.5kw | 3.5kw |
| Machine weight | 650kg | 750kg | 800kg | 900kg |
| Machine dimension(L×W×L) | 355*110*180m | 380*130*180mm | 450*160*150m | 500*180*180m |
