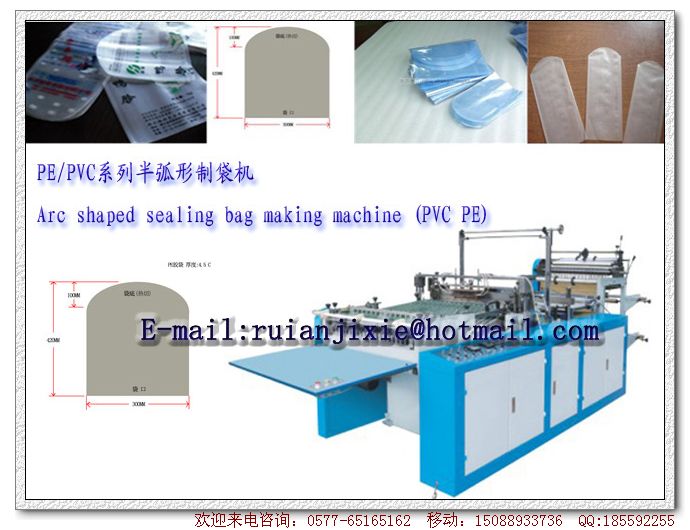

Bag Making Machine
Your location：Home >> Bag Making Machine
Usage and features:
This machine make bags for arc botton ,and the upside is straight,the wastage recycle automatic by blast.BOPP,PP,PE,PVC,POFcan be used.
Performance and allocations:
High precision photocell used.
Step motor or servo motor can be allocated.
Small-hole-line or destructible line can be allocated.
Elasticity cool cutting blade ,long time to use.
Two line produce,when the bag is blank.
Main technical parameters:
| Model | PVC PE-400mm | PVC PE-500mm | PVC PE-600mm | PVC PE-700mm |
| Max Width | 50-350mm | 50-450mm | 50-550mm | 50-650mm |
| Max Length | 100-450mm | 100-450mm | 100-650mm | 100-700mm |
| Error in in Length | 0.5-1mm | 0.5-1mm | 0.5-1mm | 0.5-1mm |
| Speed per Minute | 15-120pcs/min | 15-120pcs/min | 15-120pcs/min | 15-120pcs/min |
| Width of Silica gel Board | 100*350mm | 100*450mm | 100*550mm | 100*650mm |
| Total Power | 2.5kw | 2.5kw | 3kw | 3.5kw |
| Weight of Machine | 700kg | 700kg | 700kg | 700kg |
| Overall Dimensions | 330X85X130m | 330X95X130m | 330X105X130m | 330X1150X130m |
