USE:

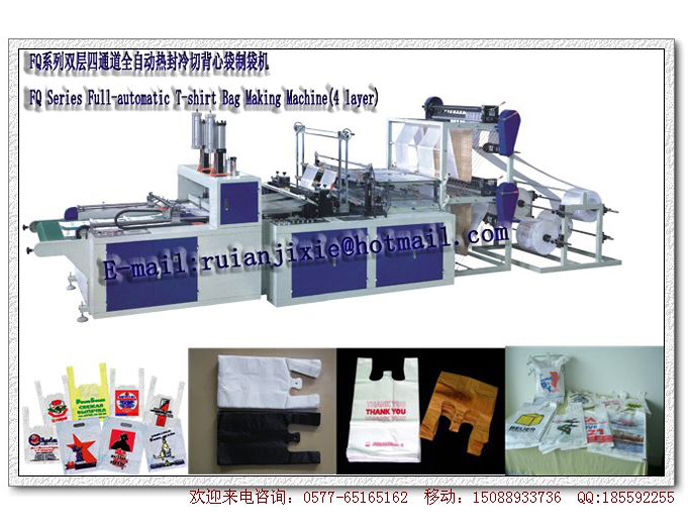

It is a fully automatic T-shirt bag(vest bag) making machine. Can make the T-shirt bag at one time from the four line raw material.
FEATURE:
The machine is high speed, fully automatic, stable in perfomance. It can automatically feed four lines plastic film, heat sealing, cold cutting and punch vest shape. It has magic eyes tracing system for print bags and auto counting, when reach preset number the machine will alarm and stop.
Main technical parameters:
| Model | 800mm | 900mm |
| Max bag width( blank) | 100-370mm | 100-420mm |
| Max bag width( color) | 100-370mm | 420mm |
| Bag length | 100-700mm | 100-700mm |
| Error of length | ±0.5mm | ±0.5mm |
| Film thickness | 0.05-0.10mm | 0.05-0.10mm |
| Max speed | 120pcs/min X4 | 120pcs/min X4 |
| Gross power | 380V 15KW | 380V 15KW |
| External dimension | 6000× 1400×1850mm | 6000× 1500×1850mm |
| weight | 1500KG | 1700KG |
