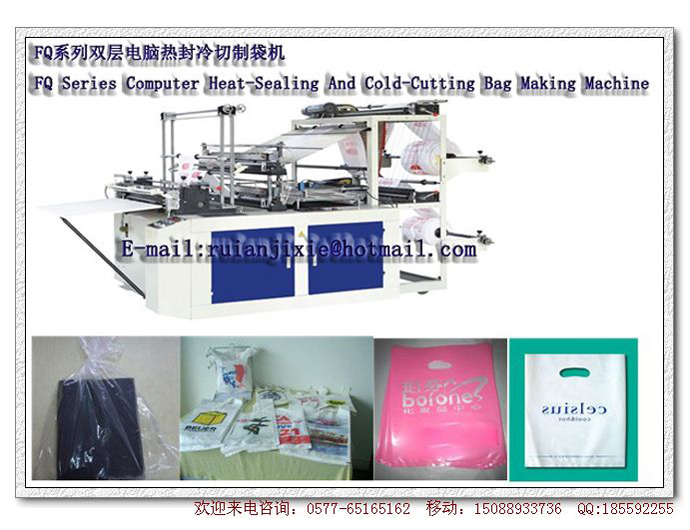

Bag Making Machine
Your location：Home >> Bag Making Machine
Uses：
This machine is suitable for sealing and cutting high-density polyethylene longevity ethylene (HDPE), low-density polyethylene (LDPE) and polypropylene (PP) plastic film, that is the best equipment for producing high-low pressure plastic film vest bags(supermarket handbags) and flat bags(clothing bags, shoe bags). disposable medical packing bag, sanitary towel bags, etc. (produce points-off garbage bags could increase dual-purpose device of rewinding and points-off knife)
This machine is equipped with photoelectric automatic control feeding device, automatic constant temperature control device, electrostatic removing device, automatic counting and alarm device,etc. with such characteristics as automatic process of bag-making, easy operation, stable performance and firm bottom sealing, this machine is the best economical and suitable sealing and cutting bag-making equipment for large,middle and small sized soft packing enterprises.
Performance and features:
1, the whole adopts microcomputer control and stepper motor drag material (optional servo motor control system).
2, arbitrary fixed-length, step length electro-optical tracking, accurate, stable. Stopping automatically when the label is lost ,the feeding use photoelectric control.
3, automatic counting and counting alarm can be set.
4, automatic constant temperature so that making sealing pocket solid, smooth
Main technical parameters:
| Model | 700mm | 800mm | 900mm | 1000mm | |
| Cutting line | Double layer double line | ||||
| Bag width | 100-600mm | 100-700mm | 100-800mm | 100-900mm | |
| Bag length | 100-1000mm | ||||
| Cutting speed | 50-120pcs/min/line | ||||
| 同步电机 | Stepping motor | ||||
| Main motor | 1.5KW | ||||
| Heating Capacity | 4KW | ||||
| Power supply | 220V, 50Hz | ||||
| Electronics used | Top China Brand | ||||
| Machine weight | 850kg | 900kg | 950kg | 1000kg | |
| Dimension | 3.2×1.25×1.8M | 3.2×1.35×1.8M | 3.2×1.45×1.8M | 3.2×1.55×1.8M | |
| Optional device | Servo motor, imported photocell | ||||
