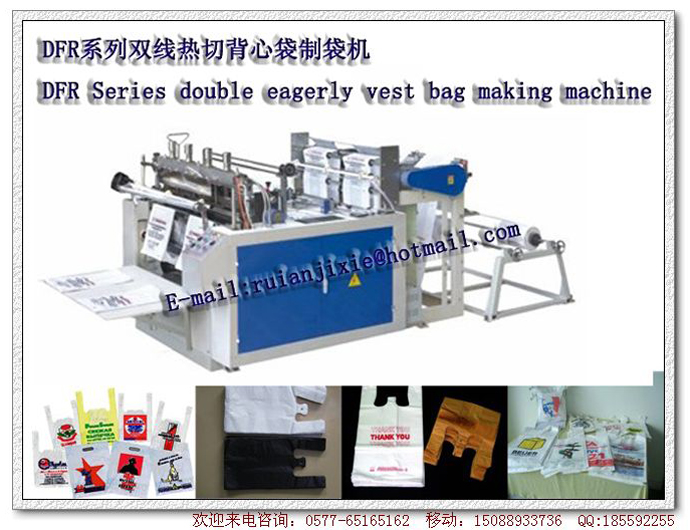

Bag Making Machine
Your location：Home >> Bag Making Machine
Use:
The machine is suitable for heat-sealing and thermal cutting of such plastic films as LDPE and HDPE etc. And it is a kind of ideal equipment for specially producing vest bags of natural color and multicolor
Performance and Characteristics:
1.an innovatively designed sealing and cutting device , and convenient to adjust the pressure seal cutter, the overall turnover up to 180 degrees for easy cleaning and replacement of adhesive tape.
2, import reflective photoelectric switch control, smooth and reliable feeding, automatically stopping the machine when the color mark is lost.
3, computer-controlled machine microcomputer, stepper motor drag material (optional servo motor control system), seal cutting precise dimension.
4, automatic counting and counting alarm and the whole output system can to be set.
5, imported equipment of frequency conversion motor to make a smooth, energy-efficient, centralized from the oil system.
Main technical parameters:
| Model | 800mm | 900mm | 1000mm |
| Cutting line | two lines | ||
| Bag width | 100-350mm | 100-400mm | 100-450mm |
| Bag length | 100-1000mm | ||
| Cutting speed | 50-120pcs/min/line | ||
| Synchronous motor | Stepping motor | ||
| Main motor | 1.5KW | ||
| Heating Capacity | 3KW | ||
| Power supply | 220V, 50Hz | ||
| Electronics used | Top China Brand | ||
| Machine weight | 900kg | 950kg | 1000kg |
| Installed dimension | 2.5×1.35×1.2M | 2.5×1.45×1.2M | 2.5×1.55×1.2M |
| Optional device | Servo motor, imported photocell | ||
