Bag Making Machine
Your location：Home >> Bag Making Machine
Characteristics :

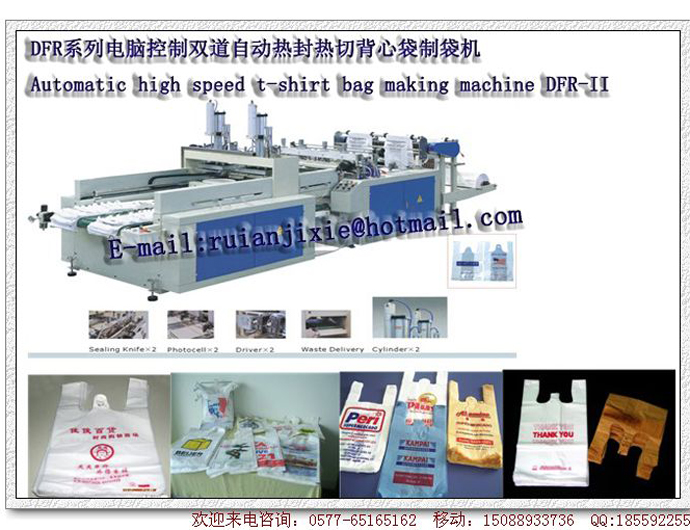

This machine is applied to manufacturing and printing the uncolored vest bags made of HDPE, LDPE roll film. It adopts PLC control, double servo（step) motor fixed length and the liquid crystal touch screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process. It is of high degree of automation and good economic result.
Main technical parameters:
| Model | 600mm | 800mm | 1000mm |
| Bag-making W | 100-250 | 100-350mm | 100-450mm |
| Bag-making L | 100-1000mm | 100-1000mm | 100-1000mm |
| Thickness of Film | 0.015-0.035mm | 0.015-0.035mm | 0.015-0.035mm |
| Bag-making speed | 30-150*2pcs/min | 140-200pcs/min*2 | 140-200pcs/min*2 |
| Air pressure | 5kg/cm2 | 5kg/cm2 | 5kg/cm2 |
| total power | 6kw | 8kw | 9kw |
| Machine weight | 1200kg | 1400kg | 1600kg |
| Overall dimensions | 4.2×1.2×1.55m | 6×1.4×1.6m | 6×1.5×1.6m |
