SJ-C100 (110 120) made ​​of recycled plastic feeder type

Hits：

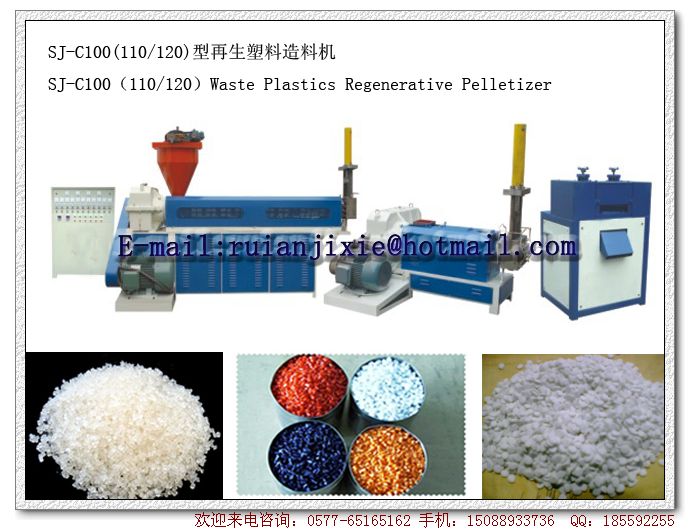

SJ-C100 (110 120) made ​​of recycled plastic feeder type

Use:
It is used for recycling of the used and waste plastic materials.It equipped with automatic constant temperature,clectric changing filter nets.It also can pelletize the croushing material after fitting with a loader.The cutting machine adopts speed regulating motor. which can cut the matcrial according to the feeding speed of the extruder. With such features as high output,low noise,stable performance and easy operation.It is a more ideal waste plastic film regenerative.pelletizer.
Main Technical Variables:

Model 90mm 100mm 110mm 120mm
Diameter of screw stem 85mm 95mm 105mm 110mm
Major diameter ratio of screw stem (L/D) 20:1-22:1 20:1-22:1 20:1-22:1 20:1-22:1
Rational speed of screw 10-110rpm 10-110rpm 10-110rpm 10-110rpm
Main motor power 22kw 30kw 30kw 37kw
Output 60kg/h 90kg/h 110kg/h 130kg/h
Machine weight 2t 2.1t 2.2t 2.5t
Overall dimensions 5800 x 1500 x 1100mm 5900 x 1300 x 1200mm 6000 x 1350 x 1300mm 6200 x 1400 x 1350mm
