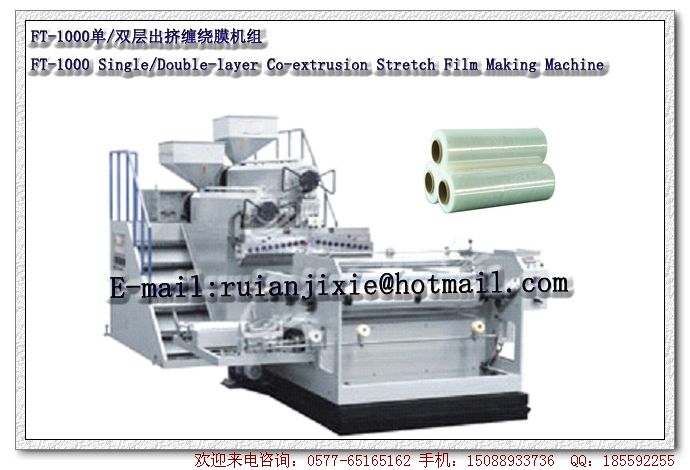

Stretch Film Machine，Bubble Film Machine
Your location：Home >> Stretch Film Machine，Bubble Film Machine
Use:
This unit uses LLDPE as main material and adopts several kinds of resins to manufacture the single/double-side self-sticky stretch wrapping film. The film has good tensile strength, anti-pricking ability and impact strength. Its good shrinking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust. The transparency and tensile strength of this product can make the packaging beautiful, economical and practical. The film can be widely used in wrapping of palletized goods. It’s a good substitute for hot shrinking packaging film during transportation.
OPTIONAL EQUIPMENT:
1) AUTO LOADER
2) AUTO DRY HOPPER
3) MOTORIZE NET CHANGER
4) HYDRAULIC CHANGER
5) AIR SHAFT
6) GLUE PUMP
Main Technical Variables:
| model | FT-1000double-layer | FT-1000single-layer |
| Screw diameter(mm) | 65*2 | 75 |
| L/D ratio of screw (L/D) | 28:1 | 28:1 |
| width of die head (mm) | 1250 | 1250 |
| Width of finished products(mm) | 1000(500*2) | 1000(500*2) |
| Thickness of finished products (mm) | 0.015-0.05 | 0.015-0.05 |
| Structure of film layers | A/B | -- |
| Max. output (kg/h) | 100 | 100 |
| Main motor power（kw） | 18.5*2 | 30 |
| Linear speed of machinery (m/min) | 50-100 | 50-100 |
| Total power (KW) | 140 | 120 |
| overall dimensions（L*W*H）(mm) | 7.5*4.5*3.2 | 7.5*4*3.2 |
| Weight (T)(About) | 5.5 | 4.5 |
| Total power | 7KW | 7KW |
| Heating power | 51KW | 30 KW |
