Stretch Film Machine，Bubble Film Machine
Your location：Home >> Stretch Film Machine，Bubble Film Machine
Use:
This machine uses LDPE and LLDPE to products casting stretch film, which widely used in packing area for building material, auto parts, hardware parts etc.

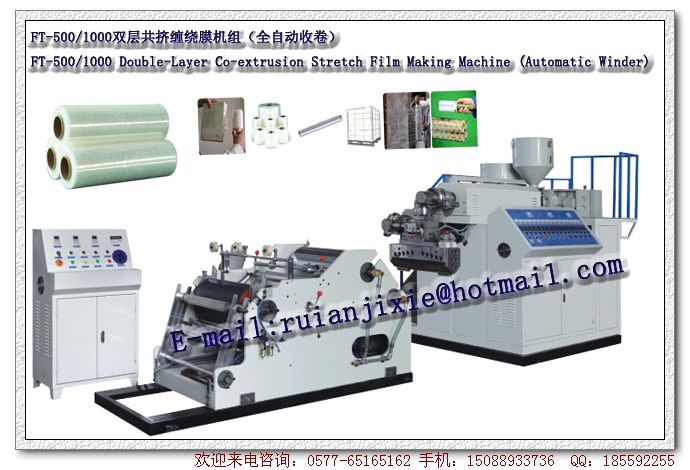

FT-500/1000 automatic stretch film co-extruder with following feature: low noise, stable running, especially winding part controlled by PLC program.
OPTIONAL EQIPMENT:
1) AUTO LOADER
2) AUTO DRY HOPPER
3) MOTORIZE NET CHANGER
4) HYDRANULIC NET CHANGER
5) AIR SHAFT
6) GULE PUMP
Main Technical Variables:
| Model | FT-500 (double) | FT-1000 (double) |
| Diameter of Screw Stem | 55mm*2 | 65mm*2 |
| Major diameter ratio of screw Stem(L/d) | 28:1(L/D) | 28:1(L/D) |
| Rationl speed of screw stem | 10-120rpm | 10-120rpm |
| Folding Width of Products | 200-500mm | 1000(500*2)mm |
| Thickness | 0.015-0.05mm | 0.015-0.05mm |
| Main motor power | 15kw*2 | 18.5kw*2 |
| Heating Power | 30kw | 50kw |
| Max. output(kg/h) | 40 | 100 |
| Machine weight | 3T | 5.5T |
| Overall Dimension(L*W*H)mm | 4500*2600*2550 | 7500*4500*3200 |
