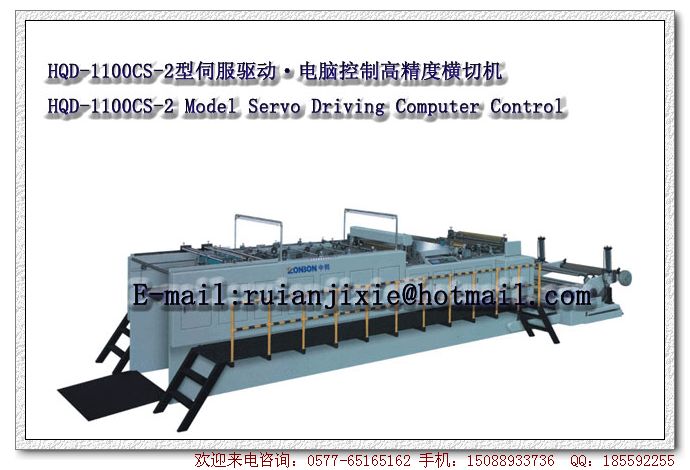

Cross-cutting, cutting machine
Your location：Home >> Cross-cutting, cutting machine
Main Features:
This machine is suitable for material in roll to lengthwise and transverse cutting, For example: golden and silver paperboard, plain rainbow paper, laser bogus-prevented paper, white cardboard paper and plastic slice material etc. The main electric control system adopts center computer control(PLC), person-machine interface operation, dynamic display. Constant length controlled by import servo driving system and automatic identifying-markings photoelectric scanners adopt that imported from German to ensure cutting accuracy. With advanced control mode, this machine centrally controls the speeds of the main motor, servomotor and feeding motor through computer so as to achieve the purpose of synchron-ous operation. It has such characteristics as high-precision, high speed,material taken up easily and heaping in order etc.
Main Technical Parameters:
|
Max cutting width
|
1100mm
|
|
Cutting length
|
450-1400mm
|
|
Max. Unwinding diameter
|
Ф1600mm
|
|
Cutting speed
|
≤60m/min
|
|
Cutting accuracy
|
±0.15-0.2mm
|
|
Range of paper
|
70-350g/m2
|
|
Stacking height
|
1000mm
|
|
Working voltage
|
380V/50Hz
|
|
Power
|
11KW
|
|
Machine weight
|
8000Kg
|
|
Overall dimension
|
8800x3200x2000mm
|
