Feature:

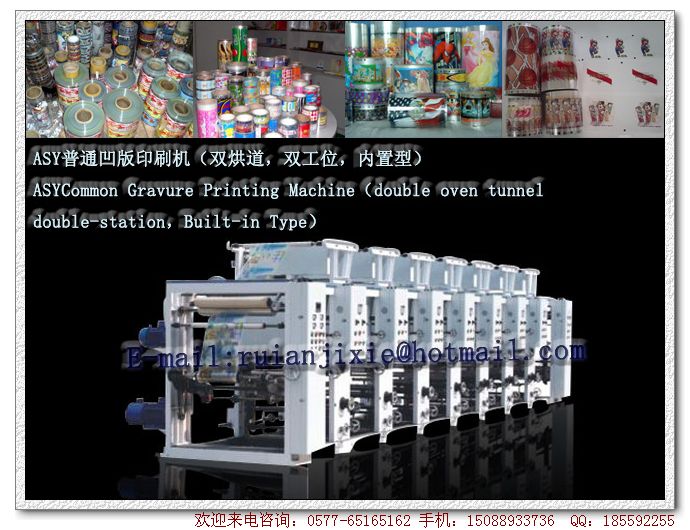

1、RXPT-NS-S Common gravure printing machine is suitable for BOPP、PET、PVC、PE、Rolling Paper etc with good printing performance of rolling material for multicolor continuous printing.
2、This machine is Composite style, increased or decreased according to the customers’ requirement.
3、The printing can be finished one time continuously with both side.
4、Ease of operation, and stability, with 360 degree of installment system. The parts of transmission is adopted with gear structure with full sealing lubrication .
5、The tension system is adopted with magnetc powder clutchcontroller.
6、The parts of rewinding is adopted with torque moltor. With double over passage design, fast drying, fast printing winding and rewinding are both double working mechanisms to make the material complete with non-stop.
Main parameter:
| Model | ASY-600A | ASY-800A | ASY-1000A | ASY-1200A |
| Printing Colors | 1-9 | 1-9 | 1-9 | 1-9 |
| Diameter of Printing cylinder | 100-320mm | 100-320mm | 100-320mm | 100-320mm |
| Max. Printing width | 600mm | 800mm | 1000mm | 1200mm |
| Max. diameter of Unwind | 500mm | 500mm | 500mm | 500mm |
| Max. diameter of Rewind | 500mm | 500mm | 500mm | 500mm |
| Max. Printing Speed | 5-60m/min | 5-60m/min | 5-60m/min | 5-60m/min |
| Register Precision | ≤0.10mm | ≤0.10mm | ≤0.10mm | ≤0.10mm |
| Drying Method | Electric heating | Electric heating | Electric heating | Electric heating |
| Machine Power | 44kw | 46kw | 48kw | 52kw |
| Machine Weight | 6500kg | 7000kg | 7500kg | 8000kg |
| Oerall dimension | 920×180×230m | 920×200×230m | 920×220×230m | 920×240×230m |
