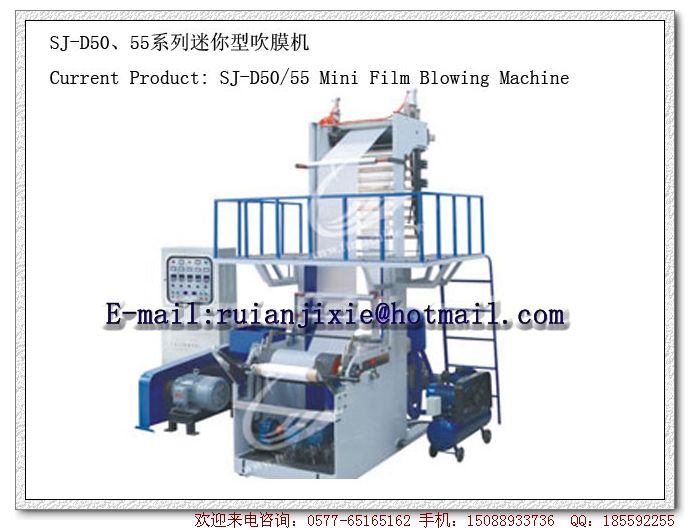

Film Blowing Machine
Your location：Home >> Film Blowing Machine
USE:
Its cylinder and screw rods are made of quality 38CRMOALA that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. it is applied to blowing the plastic films like low density polytene(LDPE),high desity polytene (HDPE) and linear low desity polytene(LLDPE).it is widely applied to producing the packing bags for foodstuff. clothing, rubbish bag and vest ones.
OPTIONAL EQUIPMENT
1) AUTO LOADER
2) CAST ALUM HEATER
3) AIR SHAFT
4) PNEUMATIC DEVICE
Main Technical Variables:
| Model | 600mm | 800mm |
| Diameter of Screw(mm) | φ50 | φ55 |
| Reduced diameter of Film (mm) | 100-600 | 200-800 |
| Single-face Thickness of Film(mm) | 0.01-0.10 | 0.01-0.10 |
| Max. Extrusion(kg/h) | 20-35kg/h | 30-50kg/h |
| L/D | 26:1 | 26:1 |
| Power of Main Motor(KW) | 7.5-11kw | 11-15kw |
| Power of Traction Motor(KW) | 1.1kw | 1.1kw |
| Heating Power(KW) | 11kw | 13kw |
| outline diameter(L*W*H)(mm) | 3800×1900×3000mm | 5500×2100×3500mm |
| Weight(T) | 1.5T | 2T |
