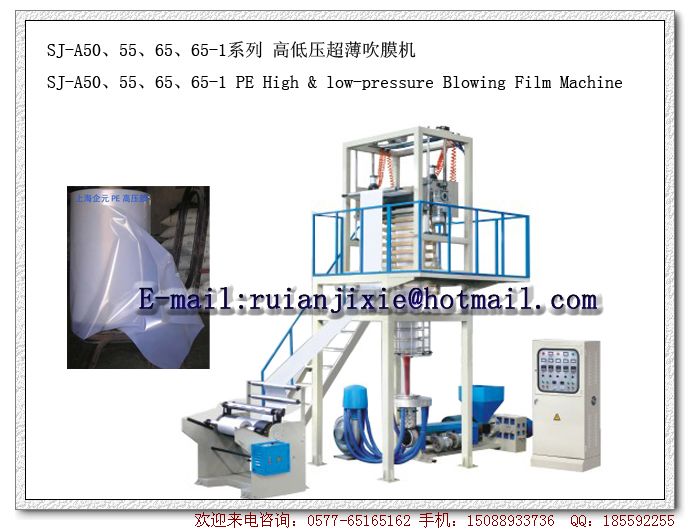

SJ-A50 ,55,65,65-1 series of high and low voltage ultra-thin film blowing machine

Hits:
SJ-A50 ,55,65,65-1 series of high and low voltage ultra-thin film blowing machine

use:
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
OPTIONAL EQUIPMENT:
1)AUTO  LOAD
2)CAST ALUM HEATER
3)AIR SHAFT
4)DIE ROTARY DEVICE
5)BOUBLE SIDES  WINDER
6)UP AND DOWN

Main Technical Variables:

Model 600mm 800mm 1000mm 1200mm
Diameter of screw φ50 φ55 φ65 φ65
Rcduced diameter of film(mm) 100-600 200-800 300-1000 400-1200
Single-face Thickness of film(mm) 0.01-0.10 0.01-0.10 0.01-0.10 0.01-0.10
Max.Extrusion(Kg/h) 20-35kg 20-50kg 30-65kg 50-80kg
L/D 28:1 28:1 28:1 28:1
Power of main moto(kw) 7.5-11kw 11-15kw 18.5-22kw 22kw
Power of Tracion main moto(kw) 1.1kw 1.1kw 1.5kw 1.5kw
Heating Power(kw) 11 13 19 21
Outline diameter(L x W x H) (mm) 4.8 x 1.9 x 3.5m 5.5 x 2.1 x 3.8m 6.5 x 2.3x 4.2m 6.5 x 2.5 x 4.8m
Weight(T) 1.5T 2T 2.3T 2.6T
