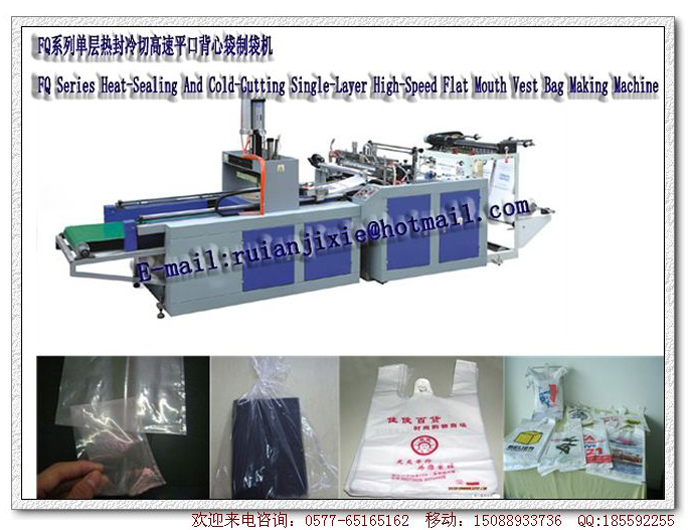

Bag Making Machine
Your location：Home >> Bag Making Machine
Descriptions:
This machine is suitable for producing HDPE and LDPE plastic . It adopts the servomotor discharge the in high speed and photocell to track the cutting, punch the "U"shape bag in one tine. And with such features, such as casy operation, high effciencyand high finished products.
Main technical parameters:
| Model | 600mm | 700mm | 800mm |
| Cutting line | one line | ||
| Bag width | 100-500mm | 100-600mm | 100-700mm |
| Bag length | 100-1000mm | ||
| Cutting speed | 50-120pcs/min | ||
| 同步电机 | Stepping motor | ||
| Main motor | 1.5KW | ||
| Heating Capacity | 2.5KW | ||
| Air pressure needed | 0.5-0.6Mpa | ||
| Power supply | 220V, 50Hz | ||
| Air cylinder used | One piece | ||
| Electronics used | Top China Brand | ||
| Machine weight | 1500kg | 1600kg | 1700kg |
| Installed dimension | 5×1.15×1.8M | 5×1.25×1.8M | 5×1.35×1.8M |
| Optional device | Servo motor, imported photocell | ||
